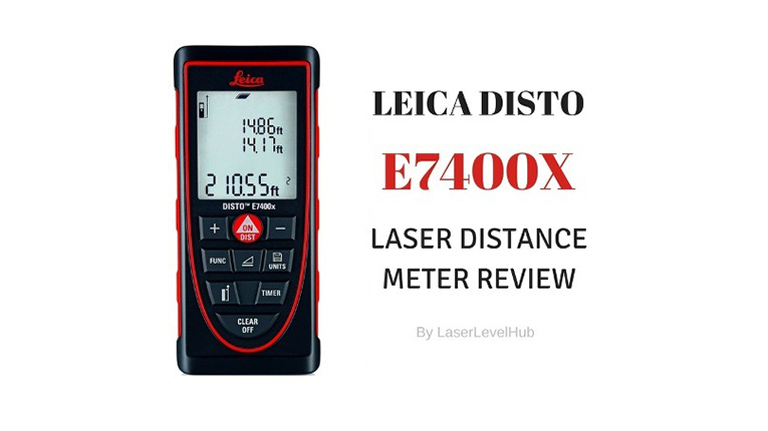

Leica DISTO E7400x Laser Distance Meter Review

By Bruce RiversLast update: 2024-11-01

If you are looking for the best laser distance measurer to save your precious time in field measuring, do not hesitate to choose the Leica DISTO E7400x.

The device measures distances of up to 265 feet with impressive accuracy.

It also calculates horizontal distances over obstructions, volume, area, and height either directly or with the tilt sensor.

Leica Disto E7400X Laser Distance Meter Review

In this Leica DISTO E7400x review, I will expound on the key features, their benefits, advantages, and other factors that define this multi-purpose Laser Distance Meter.


Leica DISTO E7400x Review Summary

Leica DISTO E7400x Laser Distance Meter
  • Features
  • Quality
  • Price
Review Summary
  • Measuring Range: 265-ft. (80 m) and up to 325ft (100m) with reflective target plate
  • Accuracy: 0.04 inches (1mm) or better than 1/16-in
  • Protection Rating: IP65
  • Measuring Units: inches, feet and inches, feet, yards, meters, cm, mm, decimal
  • Measuring Mode: Length/distance, area, volume, addition/subtraction, Pythagoras indirect measuring, min/max, stake-out
  • Memory: Last 20 measurements
  • Tripod Mounting: 1/4-in thread
  • Battery Life: approx. 5 hours or up to 5,000 measurements
  • Warranty: 2-Year Limited Warranty
  • Special Features: Bolder backlit display, 360-degree tilt sensor, multifunctional end-piece, smart horizontal mode
Our Rating
9.6Outstanding

Pros & Cons of Leica DISTO E7400x

Pros
  • Well-built casing
  • Easy to read display
  • Consistency in accuracy
  • A well designed and understandable button setup
  • A vastly superior laser distance meter with the myriad of extras like memory stack, area calculation, and unit conversion
Cons
  • Difficulties in holding the device while measuring longer distances – the dot might be shaken off before you click the button
  • For a person with slight eye problems, it might be hard to see the laser dot in bright light

Key Features & Benefits Of Leica DISTO E7400x

Its high accuracy measurability defines Leica DISTO E7400x Laser Distance Meter.

With the device, you are sure to get the length of the distances with fractional millimeter precision on a consistent basis.

Among its key beneficial features include:

***High Accuracy at Long Range

Imagine measuring a distance of up to 265 feet (and 325 feet with a reflective target) with a high accuracy within a few minutes?

The Leica DISTO E7400x will give high accuracy despite the light conditions of the place. Whether you are in a highly-lit laboratory or outside in the sunlight, you will still get the precise length of the distances.

The device is also compliant with ISO Standard 16331-1, which is the international standards for laser distance meters.

Leica DISTO E7400x Review
Leica DISTO E7400x

***Easy to Read Display

The Display Technology has been evolving for the past few years, and Leica Geosystems are among the key manufacturers to incorporate the advanced technology in their devices.

In the DISTO E7400x, the manufacturer has incorporated a brighter, bolder, and bigger display to make your measuring experience easy and amazing.

It has a greater visibility, even for the fractions, in all lighting conditions, total darkness, and full sun.

***Robust Housing and IP65 Protection For Tough Conditions

You may expect that your Laser Distance Meter is "robust" enough to work in any condition.

Since this device incorporates highly sensitive measuring elements, the manufacturer has protected them with a reinforced housing and a solid rubber over molding.

The DISTO E7400x Laser Distance Meter is ready for the bruises and occasional bumps that it may encounter during your daily measuring chores.

The device has IP65 protection which means that its keypad and housing have been specifically sealed against dust and water.

In case it gets dirty, just wipe it off with a damp cloth and get back to work.

***Measure Hard to Reach Locations With 360° Tilt Sensor

DISTO’s 360° Tilt Sensor offers you the ability to measure the hard to reach locations at home or the construction site.

Basing on distance and angle, the device will calculate the vertical values instantly from the safety of the ground.

Leica DISTO E7400x Review

The procedure is simple and easy, as you will just have to turn the Leica Laser Distance Meter on, enter the function, and then aim and measure to the bottom point, then tilt it upwards, aim and measure to the top. The device will calculate the change in height instantly. It is that easy, despite the location.

For an even greater precision, Leica DISTO E7400x has got a standard 1/4-20 tripod thread, which allows for the use of the tripod.

You can still get an adapter or tripod from Leica Geosystems that can be used with this device for greater accuracy.

See also:Best tripod for laser levels

***Measure Over Obstacles With Smart Horizontal Mode

Assume that you want to measure the distance between two walls in your house, but you have a large bookshelf in the middle.

It is almost impossible to remove the shelf out of the way, and such a move might cause a lot of mess.

Leica Smart Horizontal Mode
Source: lasers.leica-geosystems.com

With this laser device, you just have to press the Smart Horizontal Mode button and hold the DISTO E7400x Laser against the wall. You should then aim the laser up and over the shelf and measure.

The DISTO laser measure will instantly use the distance and angle values to calculate the correct horizontal value. The values will be precise as if you had just measured straight through the bookshelf.

Whether you want to measure the horizontal distance of a factory, garage or warehouse the Smart Horizontal Mode is here to offer you with the accurate values.

***Intelligent End Piece To Measure From Edges or Corners

The Leica DISTO E7400x automatically detects the orientation of the endpiece and adjust the zero point (point of reference) accordingly.

Leica DISTO E7400x Review


***Memory

Leica DISTO E7400x stores the last 20 results by default. You just need to press the units key and then navigate to the last reading with the help of the “+” or “-” keys.

How to Use & Maintenance

How to Use the Leica DISTO E7400x

Using Leica DISTO E7400x is pretty easy.

You just have to turn on the device, proceed by entering the function (metric, feet, inches, or engineering feet or inches), aim and measure the bottom point, tilt it upwards, aim and measure to the top.

The device will instantly calculate the changes in height and provide you with the accurate length.

Leica Geosystem has also incorporated a quick start guide in the package to make your first experience swift.

Or you can download the Leica online user manual which is quite detailed and easy to understand.

When using the Leica DISTO E7400x for longer distances, you can have a helper who will hold a dark, large clipboard as your target.

A slight wiggle of the dot will create a large difference in your measurement, hence the use of the target that you can see precisely.

Maintenance

Since the device has got a well-built housing, with a rubber molding, you are assured of safety from dust and spills.

After work, you can just wipe it with a dampened cloth, and then rinse it off and wipe again. Ensure that you store the device in the pouch that comes handy in the package.

How to Maintain The Laser Accuracy on Longer Distances

You might be wondering how you can get high precision for longer distances!

Leica Geosystems has got adapters and tripods that can be used to hold the device, thus avoiding inaccuracies that might be caused by shaking off the device.

You can also use the tripod support and the built-in timer, in highly lit conditions, to get a better view of the target.

Read more:Best Clamp Meters For Measuring Amperage

About The Manufacturer

Leica_Geosystems.svg

Leica Geosystems is known for its great reputation in manufacturing high-quality laser measuring devices.

They embrace the latest display technology in their devices, to offer you with higher precision in your measurements.

They have gone a step further to provide better housing for this device compared to previous DISTO models.

Conclusion

If you are looking for best laser distance meter, you have got all the reasons to buy Leica DISTO E7400x.

I have tested its accuracy over longer distances, and the ease of use without a helper, and would recommend it for your measuring tasks. The package comes with a pouch for storing the device after use. This pouch offers it an additional safety.

With the Tilt Sensor and Smart Horizontal Mode, you can get the precise lengths of almost all vertical and horizontal distances in your house, garage, or contraction site.

You can also convert these lengths into your suitable units and functions. Its Easy-To-Read display ensures that you can properly read the details to a fraction.

The Leica DISTO E7400x is a must-have tool and highly recomended by architects, appraisers and professional constractors.

Discover:Best Laser Level For Laying Tiles
